Choosing the Right 3D Printer Nozzle: Why Size and Material Matter
At Get Print3D, we understand that the quality and speed of a 3D print depend heavily on one small but critical component: the nozzle. Selecting the right nozzle for the job is essential for achieving the perfect balance of detail, strength, and print time. In this article, we’ll break down the different nozzle sizes, their impact on print quality, and why nozzle material choice can make all the difference.
Nozzle Sizes: Finding the Right Fit for the Job
3D printer nozzles come in a variety of sizes, typically ranging from 0.2mm to 1.0mm or larger. Each size has its advantages and trade-offs, making it important to match the nozzle to the type of print you’re aiming for.
-
Small Nozzles (0.2mm - 0.3mm): Ideal for high-detail prints, these nozzles can create fine, intricate details but take significantly longer to complete a print. They are also more prone to clogging, especially with certain filaments like wood-filled or glow-in-the-dark PLA.
-
Standard Nozzle (0.4mm): The most commonly used size, 0.4mm offers a good balance between detail and speed. It’s versatile enough for most projects and minimizes the risk of clogs while still allowing for relatively fine details.
-
Larger Nozzles (0.6mm - 1.0mm+): Best for large, strong parts that don’t require intricate details. These nozzles extrude more filament per pass, reducing print time significantly and increasing part strength by allowing thicker walls.
Wall Thickness and Detail Considerations
Nozzle size directly affects the minimum wall thickness of a print. A general rule of thumb is that the wall thickness should be a multiple of the nozzle diameter. For example, a 0.4mm nozzle typically prints walls at 0.8mm or 1.2mm thick.
-
Thicker Walls (Larger Nozzles): Provide stronger prints but sacrifice fine details. Great for structural parts, mechanical components, and functional prototypes.
-
Thinner Walls (Smaller Nozzles): Allow for detailed prints but require more time and precision. These are perfect for miniatures, figurines, and artistic pieces where fine details matter.
At Get Print3D, we carefully select nozzle sizes based on the project requirements, ensuring that our prints are both efficient and high-quality.
Print Speed and Clog Risks
Print time can vary drastically based on nozzle size. Larger nozzles can significantly reduce print times by extruding more filament with each pass. For example:
-
A 0.2mm nozzle might take twice as long or more compared to a 0.6mm nozzle for the same print.
-
A 1.0mm nozzle can print massive objects in a fraction of the time compared to a standard 0.4mm nozzle.
However, smaller nozzles come with the trade-off of potential clogging, especially when printing with specialty filaments like wood-filled, metal-infused, or flexible materials. Get Print3D has extensive experience in optimizing print settings to minimize these issues and keep print quality consistent.
Nozzle Materials: When and Why to Switch
Not all nozzles are created equal—different materials affect durability, thermal conductivity, and performance. Common nozzle materials include:
-

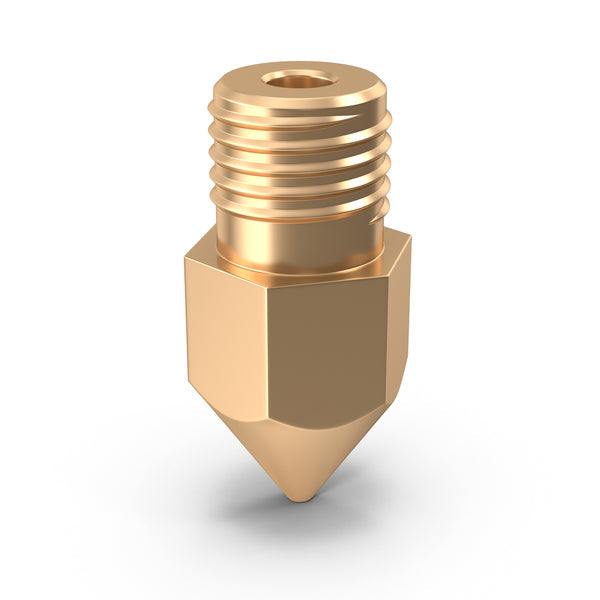

Brass: The most common and affordable option, brass nozzles work well with standard PLA, ABS, and PETG. However, they wear out quickly with abrasive materials.
-
Hardened Steel: Essential for printing with abrasive filaments like carbon fiber, glow-in-the-dark, or metal-infused filaments. These nozzles last much longer than brass but don’t conduct heat as efficiently, requiring slight adjustments in print settings.
-
Ruby-Tipped Nozzles: The premium choice for extreme durability, these nozzles can handle nearly any material while maintaining excellent heat transfer.
-
Stainless Steel: A good middle ground for durability and food-safe applications but less thermally efficient than brass.
At Get Print3D, we use the right nozzle material for each job, ensuring optimal results without unnecessary wear and tear.
Why Get Print3D Delivers the Best Results
With years of experience in 3D printing, Get Print3D has fine-tuned the balance between nozzle size, material choice, and print settings to ensure high-quality, efficient prints. We know that not every print requires the highest level of detail, and by strategically selecting nozzle sizes, we can optimize for both speed and strength without sacrificing quality.
Whether you need a finely detailed figurine or a robust mechanical part, Get Print3D has the knowledge and expertise to deliver. Our commitment to using the right tools for the job is what sets us apart, ensuring that every print meets our high standards for quality and efficiency.
Looking for high-quality, fast, and reliable 3D prints? Contact Get Print3D today and let us bring your ideas to life!
